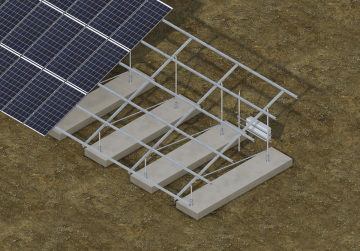

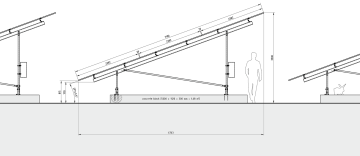

Groundfix 3V Rafters Concrete Blocks

pdf

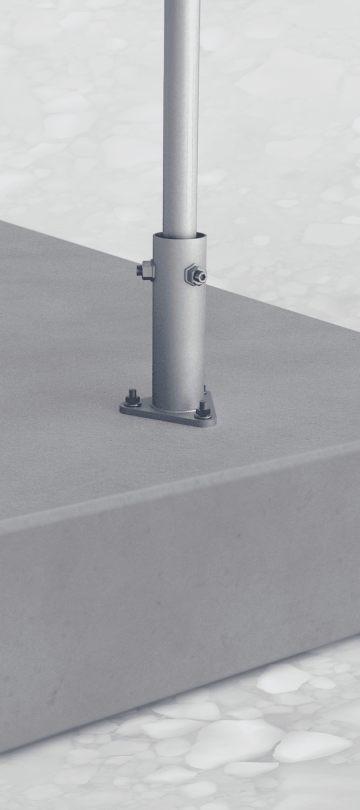

Fixation of the legs in the heel, fixed with a chemical anchor. Possibility of height adjustment of the stand.

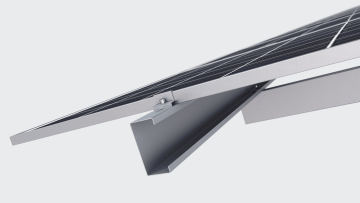

Fastening panels to longitudinal profiles

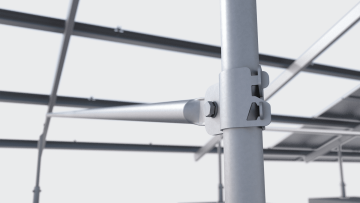

The solution for adjusting the slope of the rafters and optimal placement of the struts

Features:

  • Placing the structure on concrete blocks –the only solution for these situations:

    • unpaved terrains

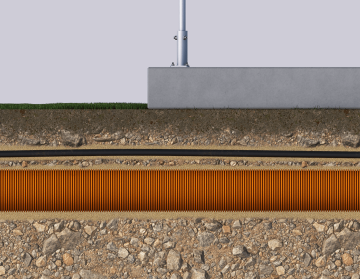

    • networks in the subsoil

    • ecologically dangerous subsoil (landfills)

  • Placement of panels on the structure – 3 panels vertically

  • Standing legs attached with feet and chemical anchors

  • A suitable solution for larger projects – high efficiency of use of the area,

    higher price for solutions with concrete blocks

  • Construction for standard FVE panel tilt range 10°–20°

  • The structure is height adjustable and can levelized uneven terrain

  • The rafter construction allows the use of different panel sizes

  • Easy and quick installation

  • All construction elements hot-dip galvanized according to DIN EN ISO 1461

  • The construction is according to ČSN EN 1990

  • Weight of 1 MW approx. 26 t

  • Made in Czech Republic
