Groundfix 3V Rafters groundscrew

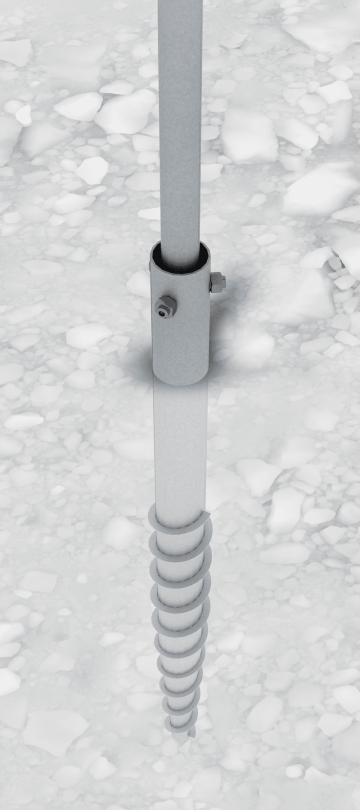

Attaching the legs to the ground screw allows the height of the structure to be adjusted

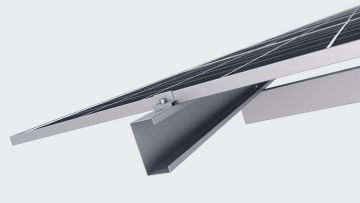

Fastening panels to longitudinal profiles

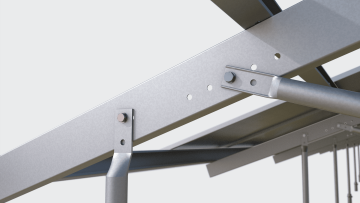

The solution for adjusting the slope of the rafters and optimal placement of the struts

Features:

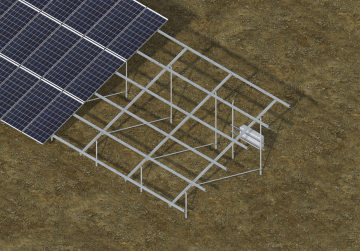

Placement of panels on the structure – 3 panels vertically
A suitable solution for larger projects – high efficiency of use of the area,
more favorable construction price

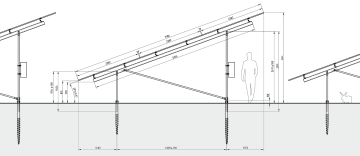

Construction for standard FVE panel tilt range 10°–20°
The structure is height adjustable and can levelized uneven terrain
Certified screws of the brand BAYO.S
The rafter construction allows the use of different panel sizes
All construction elements hot-dip galvanized according to DIN EN ISO 1461
The construction is according to ČSN EN 1990
Weight of 1 MW approx. 28 t
Made in Czech Republic
